Whether you just pulled your car out of the trailer from the last pass of the season or you are doing a mid-summer teardown in the garage, your driveline has taken a beating. It’s easy to assume that because your rear end held together on the last run, it has another pass left in it. But relying on hope is the fastest way to end up broken on the starting line.
To prevent mid-season catastrophic failures, you need to pull that center section and give it a thorough inspection. Here’s your technical guide to inspecting, diagnosing, and rebuilding your rear-end center section.
1. Street Gears vs. Pro Gears: Know Your Setup
A question we hear often is, “How often should I inspect my center section?” The answer depends heavily on your horsepower and the type of gears you are running.
Because Pro gears are intentionally softer to absorb the violent shock of high-horsepower launches, they will wear out faster than Street gears. If you run a Pro gear, pulling your center section for regular inspections is a must.
At Moser, we offer gear sets in 9″, 9.5″, and 10″ configurations, available in both Street and Pro compounds, as well as ISF micro-polished options for reduced friction.
2. The Initial Teardown: Reading the Fluid
Before you start unbolting the third member, your gear oil will tell you a story.

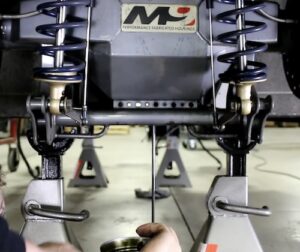

- Drain with Care: Empty the fluid into a clean, uncontaminated container.
- Inspect for Debris: Look closely for excessive metallic shavings or heavy metal debris. While a tiny amount of micro-glitter can be normal wear, large flakes or chunks are an immediate red flag indicating gear tooth or bearing failure.
You can always drain the used gear oil through a fine-mesh paper paint strainer or a coffee filter to catch and examine any non-magnetic debris that might be present. Any brass, aluminum, or fibrous debris should be investigated.

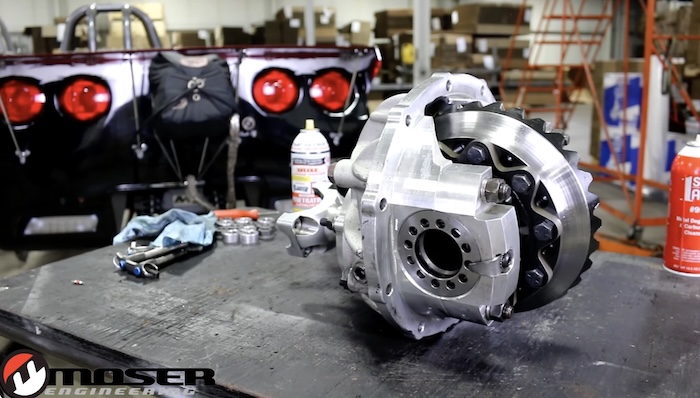

3. The Bench Inspection: What to Look For
Once the fluid is drained, pull the center section and get it on the bench. You are looking for obvious signs of fatigue, but you also need to check the critical tolerances that keep your rear end alive under massive torque loads.

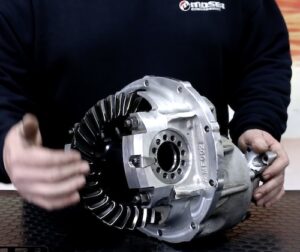

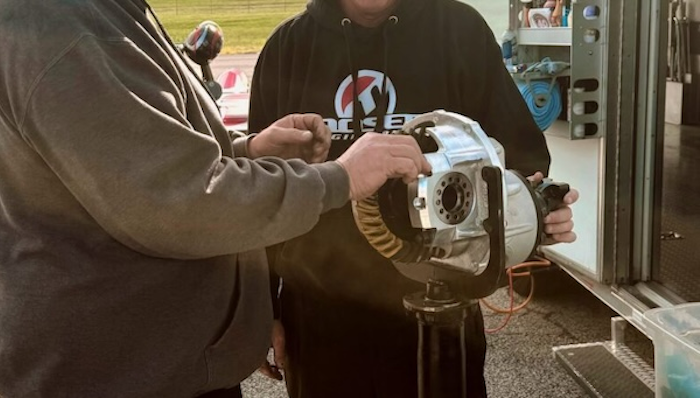

- Ring Gear Health: Rotate the assembly and inspect the ring gear teeth. Look for pitting, scoring, excessive wear patterns, or hairline cracks.
- Hardware Check: Ensure all bolts and nuts are torqued to spec and haven’t backed out from vibration or tire shake.
- Seals and Bearings: Check for any weeping or blown seals. Feel for bearing play – any slop in the pinion or carrier bearings means it’s time for a rebuild.
- Backlash and Preload: Check your backlash to ensure it hasn’t opened up excessively. If the backlash is loose or the bearing preload has vanished, your setup is compromised.
4. Rebuilding: DIY Prep vs. Professional Setup
Eventually, every gear set and bearing wears out. When it’s time for a refresh, you have options.
If you know your way around a toolbox and want to save some money, you can disassemble the center section yourself. Strip it down and send us only the reusable hard parts:
- The Case
- Pinion Support
- Pinion Yoke
- Spool
Whether you send us the bare components or ship the complete, assembled center section, our experts will handle the rest. We’ll evaluate the wear patterns, set the exact backlash and preload, and fully rebuild your unit with brand-new pilot, pinion, and carrier bearings, shims, and seals.
Track-Proven Performance, Lightning-Fast Turnaround
At Moser Engineering, we know downtime costs you races. Because we manufacture, forge, and machine everything in-house, we control the quality from start to finish. We offer an industry-leading 2-day turnaround on most custom builds and services. In a real mid-season pinch? Ask us about our Next Day service.
Don’t wait until you’re leaving parts on the track. If you are unsure what to look for, or need help updating your axles, spool, or carrier, let our expert staff help. We can get you the parts you need, fast!
