Sale!

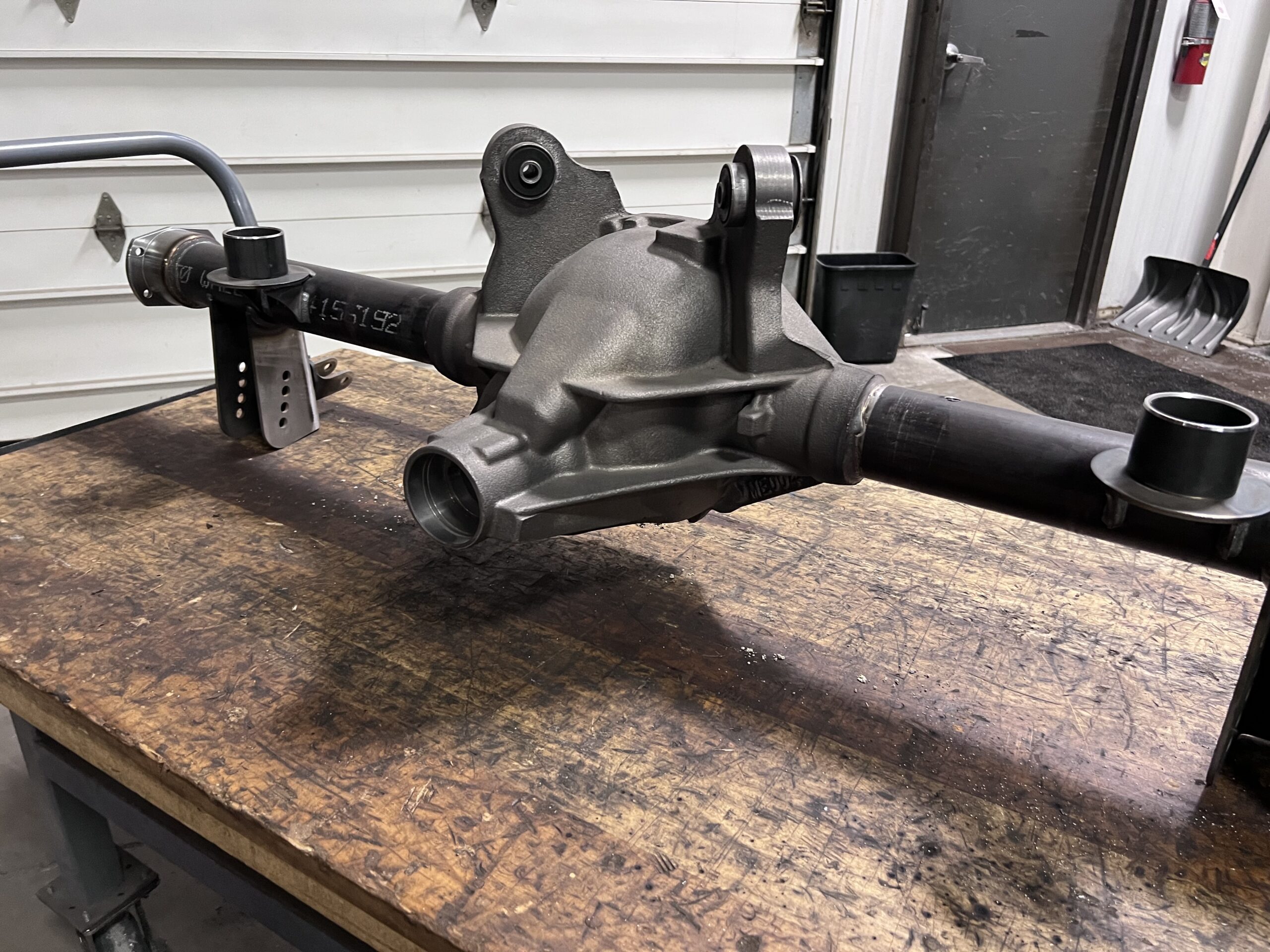

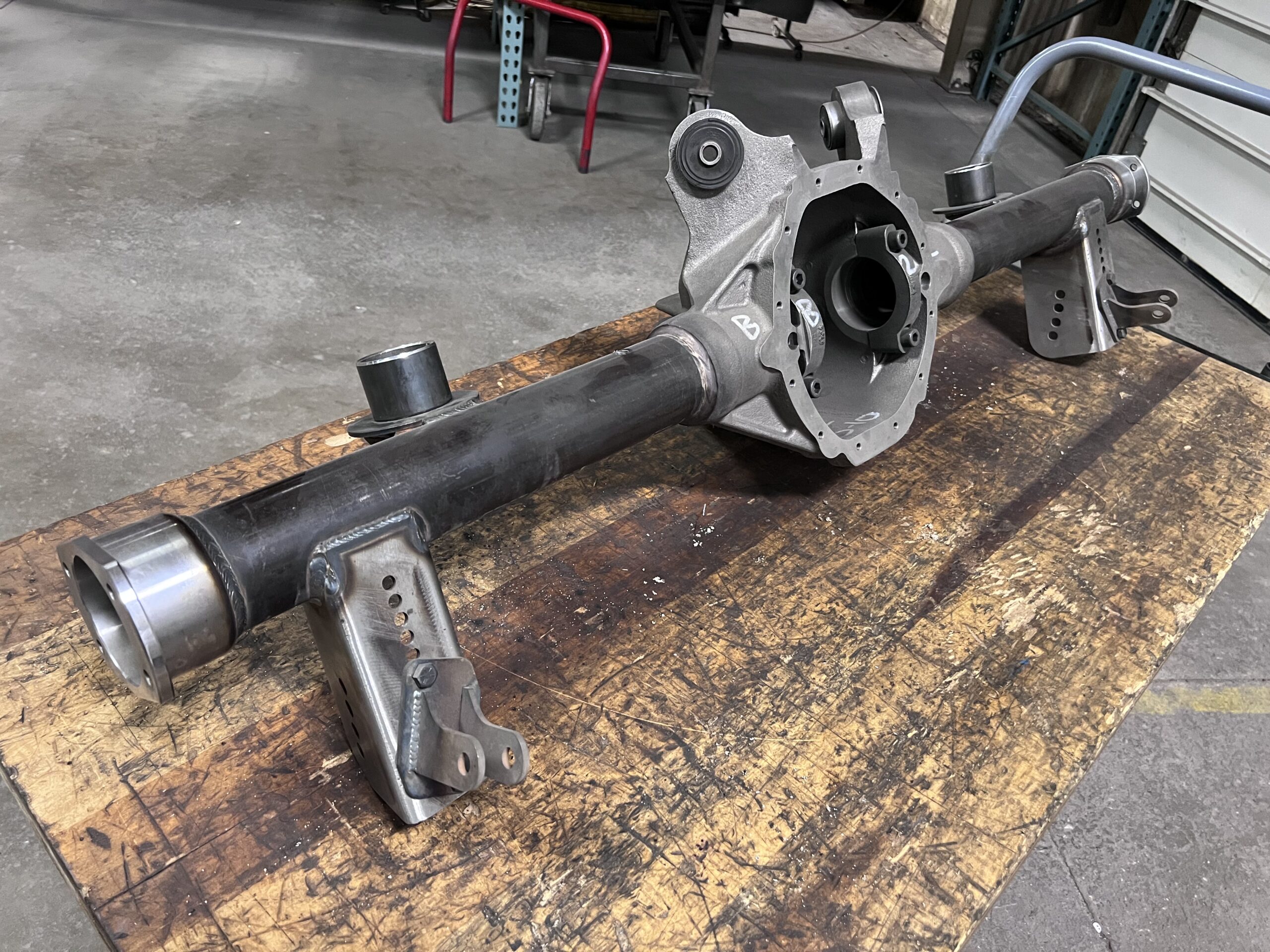

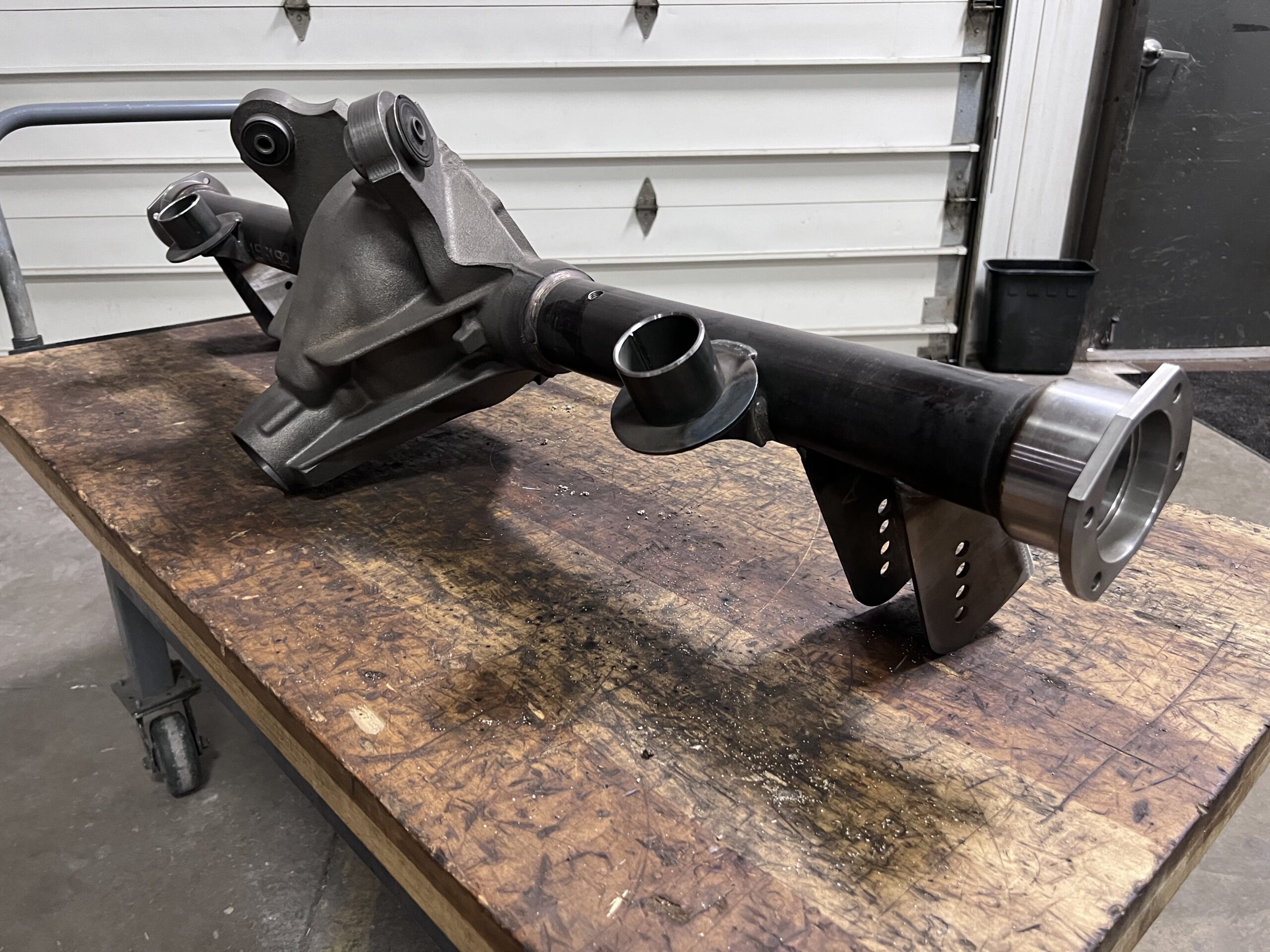

1964-67 GM A-Body 12 Bolt Housing with Torino Ends – Stock Width

***CANCELLED ORDER UNIT***

This 12 Bolt Housing was built as a display model for our shows. This housing DOES NOT have any internals. This is a 12 Bolt Housing with the option to purchase axles with it at an additional cost. The housing is built to stock width using Big Ford New Style (Torino) Housing Ends. This housing requires aftermarket bolt-in style axles & aftermarkets brakes and will NOT work with c-clip axles or stock brakes.

TAKE ADVANTAGE OF THIS DEAL, AS IT WONT LAST LONG!

  • Fits: 1964-67 GM A-Body
  • Housing End to Housing End = 54.75″ (Torino Housing Ends)
  • Axle Flange to Axle Flange = 59.75″ (without rotors) – Axles Sold Separately
  • 30, 33, or 35 Spline Axles Available at an Additional Cost
  • Axles Can Be Built To Any 5-Lug Bolt Pattern
  • Requires Aftermarket Brakes made to work with Big Ford New Style (Torino) Housing Ends & 2.50″ Brake Offset
  • Requires Aftermarket Axles and will NOT work with c-clip axles
  • Adjustable Lower Control Arm Mounts #7234ADJ
  • Adjustable Coil-Over Mounts & Hardware #728072AG
  • Tall Spring Cups/ Spring Mounts Installed

All Moser 12 Bolt Housings are designed and manufactured in the U.S.A. using Moser Engineering owned Casting Boxes.

MADE IN THE USA…TRACK TESTED IN THE USA

Original price was: $1,740.00.Current price is: $1,566.00.

TRUCK FREIGHT ACKNOWLEDGEMENT

  • *

DIFFERENTIAL FLUID

  • *

POWDERCOAT HOUSING - UPGRADE

  • *

(OPTIONAL) AXLE SHAFT TYPE & SPLINE COUNT

  • *

BOLT PATTERN / BEARING & STUD PACKAGE

  • *

Product Base Price:

Selected Options Total:

Your Price:

12 Bolt Built to Order Housing & Axle Packages

  • All Moser 12 Bolt Housings are designed and manufactured in the U.S.A. using Moser Engineering owned Casting Boxes.
  • Package includes; New Moser 12-Bolt Made in the U.S.A. Housing, with OEM located mounting provisions, seamless steel tubing (3" O.D., 1/4" wall), custom alloy axles (30, 33, or 35 spline), bearings, studs, seals, heavy duty retainer plates, new housing ends and t-bolt kit.
  • Many options available!
  • Want your unit completely assembled? Try our MUSCLE PAK line of rear ends
  • Standard Finish is no coating (bare metal), Powder Coating optional (adds 2-3 Days processing time).

Additional information

Weight 330 lbs
Dimensions 62 × 13 × 19 in
