***CANCELLED ORDER UNIT*** 1977-90 Chevrolet Impala / Caprice – 9″ Ford Auto-Cross Edition Full Float Rear End, Competition Brakes, & 3rd Member Package
***CANCELLED ORDER UNIT – ONLY 1 AVAILABLE AT THIS PRICE***
Designed specifically for the 1977-1990 Chevrolet Impala and Caprice, this Moser Engineering Auto-Cross Full Float Rear End Package combines maximum strength, precise handling, and exceptional braking performance into one complete assembly. Built to the factory 61.625″ wheel mounting surface to wheel mounting surface width, this package is ideal for autocross, pro touring, road racing, street performance, and high horsepower applications.
***THIS REAR END IS DESIGNED SPECIFICALLY FOR CUSTOMER’S RUNNING COILOVERS. THERE ARE NO SPRING CUPS/MOUNTS INSTALLED ON THE HOUSING
***THIS REAR END INCLUDES A COMPETITION STYLE WILWOOD BRAKE PACKAGE (Narrow Mount DynaPro NDP w/ Forged Billet Calipers, & Standard Ultralite Vane Rotors 12.19″
Unlike traditional flanged axle rear ends, Moser’s full floating hub design isolates vehicle weight from the axle shafts, reducing axle deflection and minimizing brake pad knock-back during aggressive cornering. The result is a firmer brake pedal, improved durability, and consistent performance under the most demanding conditions.
Housing Features

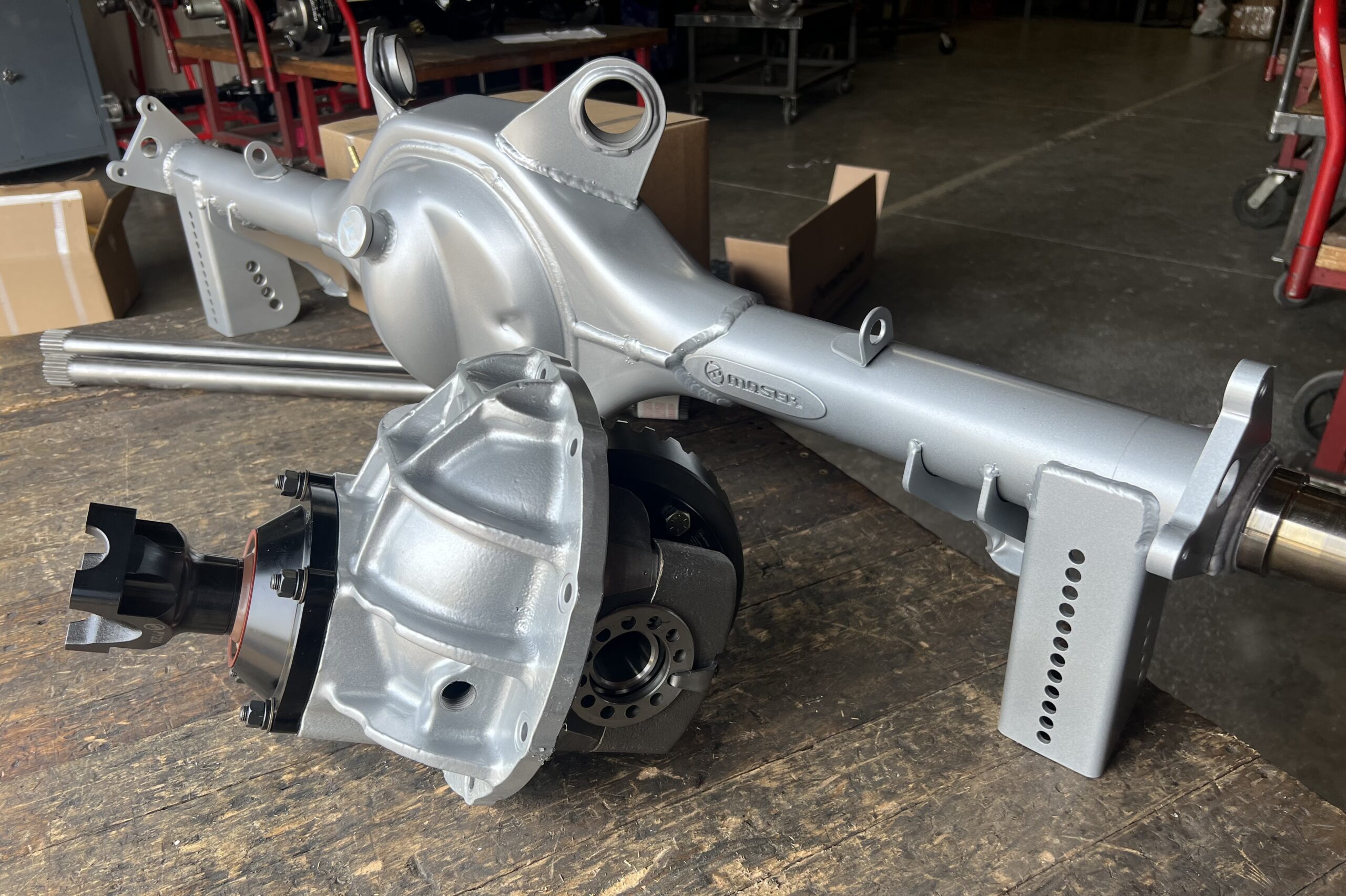

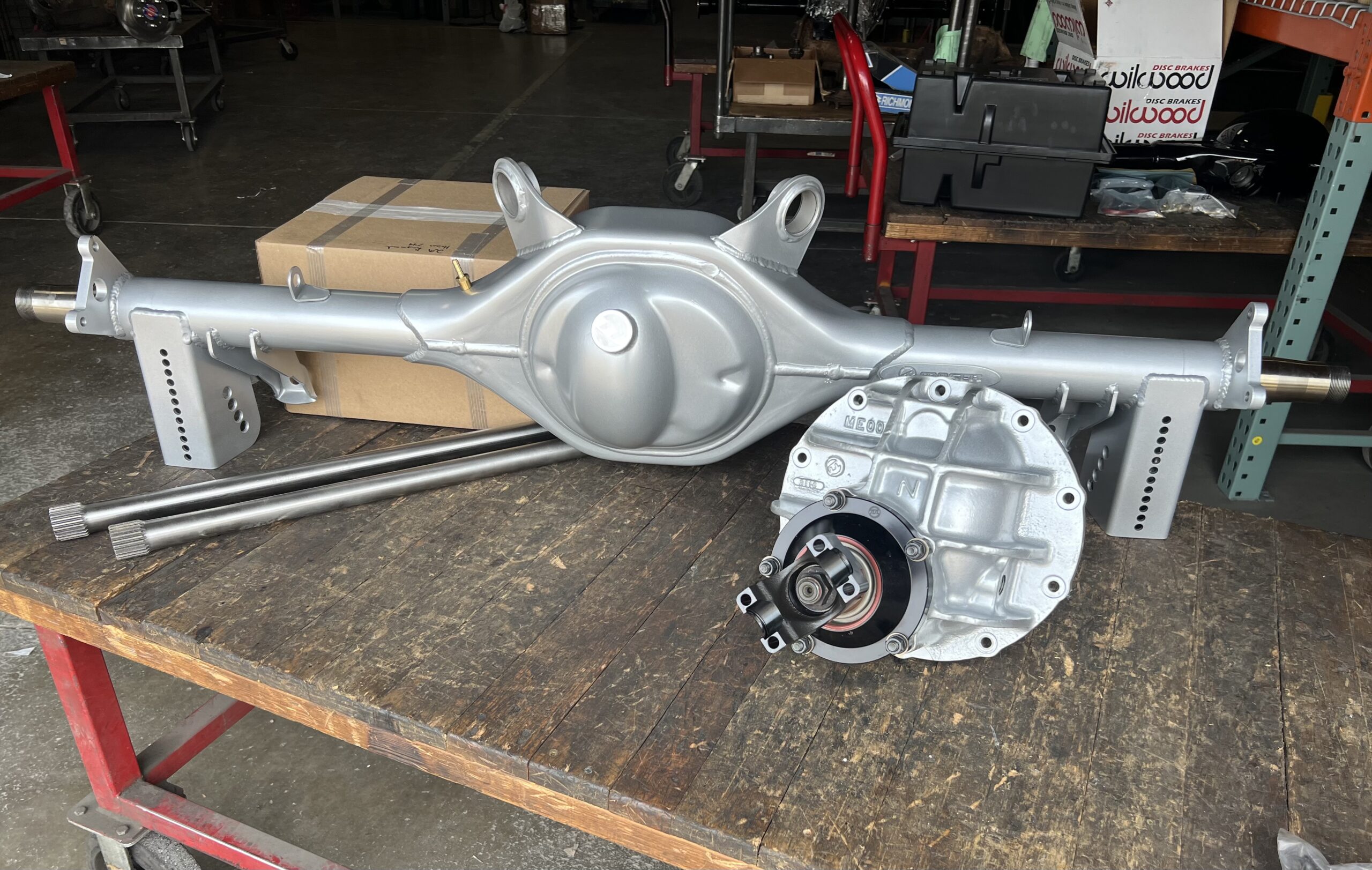

This package includes a premium Moser Extreme Duty Notch Back 9″ Ford housing featuring:
- Built to stock 1977-90 Impala/Caprice width (61.625″ WMS-WMS)
- Extreme Duty stamped steel housing
- NO SPRING SUPS (COIL OVER SETUP)

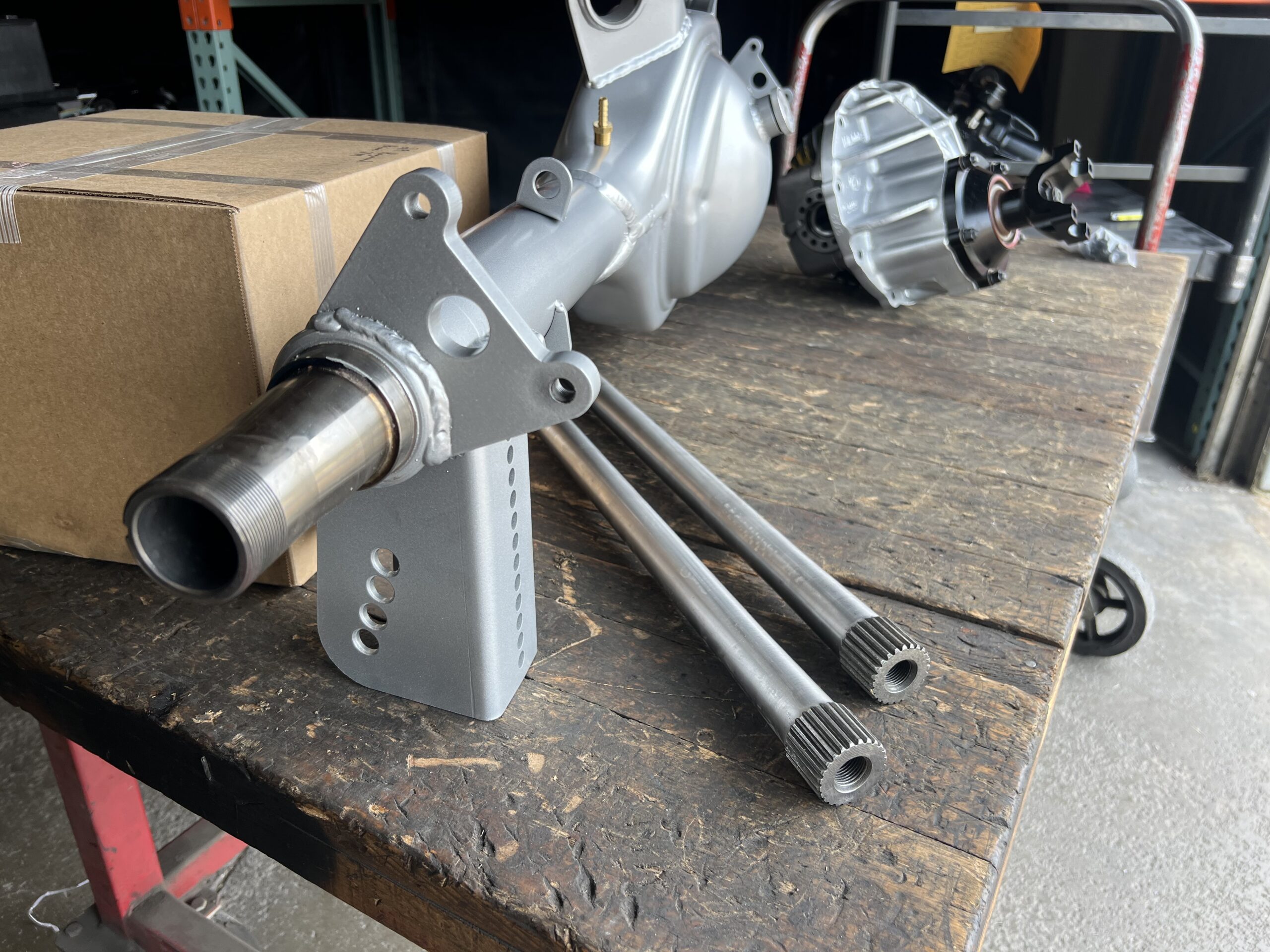

- Small bearing full float hardened snouts
- Welded on Caliper Brackets
- 3″ O.D. DOM axle tubes
- Adjustable lower control arm mounts
- Fill and drain plugs installed
- 1-Coat Silver powder coating
- Gun-drilled 31 spline full float axle shafts
Wilwood Brake Package
Included is the premium Wilwood Combination Parking Brake (CPB) system featuring:
- Wilwood Competition Package Narrow Mount DynaPro calipers (NO PARKING BRAKE)

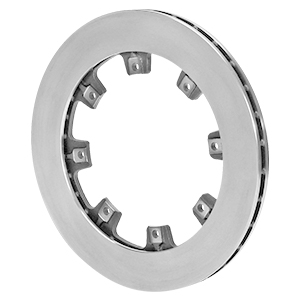

- Standard Ultralite 32 Vane, 12.19″ rotors – #160-5843

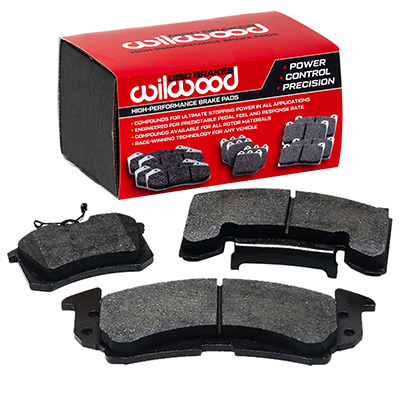

- Wilwood Polymatrix Brake Pads – # 15A-7263K
- Weld on Caliper Brackets Already Installed on Housing
- Stainless flex-line hose kit
- Complete mounting hardware
The CPB system combines hydraulic braking performance with a mechanical parking brake, making it an excellent solution for high-performance street vehicles that still require a functional parking brake. The SRP directional rotors improve heat dissipation, reduce pad glazing, and deliver consistent braking performance during aggressive driving.
Third Member Included

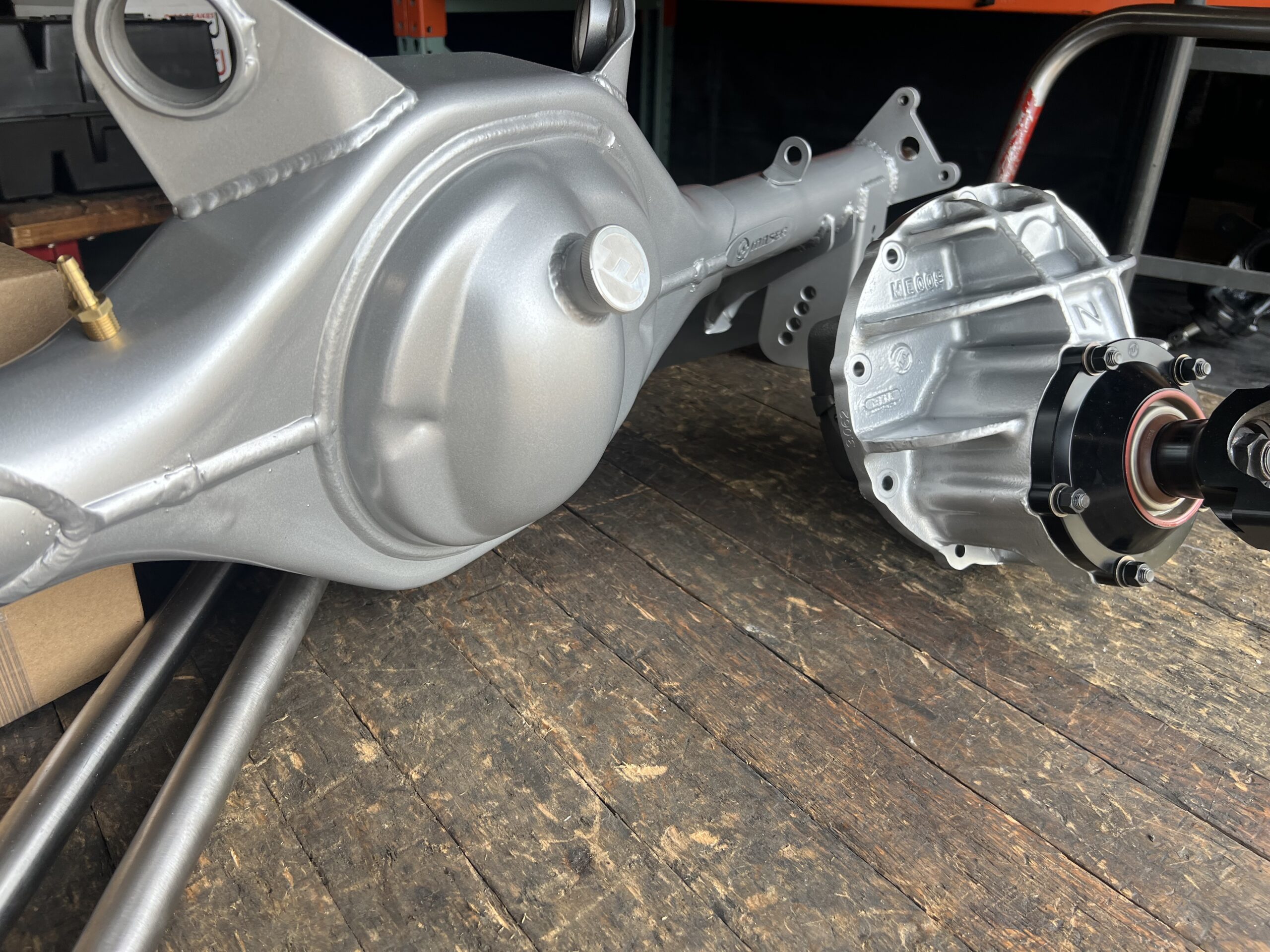

This package includes a professionally assembled Moser third member featuring:
- Moser Nodular Performance Case – #3062NOD
- 31 Spline Wavetrac LSD/ Posi Differential – #5W9F31 (Lifetime Warranty / MADE IN THE USA)
- 1350 Series Pinion Yoke – #PY200
- Aluminum Daytona Pinion Support – #PS028
- 4.11 Pro / Street Ring & Pinion Gear Set – #09F411
- 1-Coat Silver Powder Coated Finish
Additional gear ratios are available for an additional charge.
Wheel Bolt Pattern Options
Choose from:
- 5 x 5″
- 5 x 4.75″
- 5 x 4.50″
Wheel Stud Options
Select your preferred wheel studs:
- 1/2″-20 x 1.9375″ Press-In
- 1/2″-20 x 3″ Press-In
Package Includes

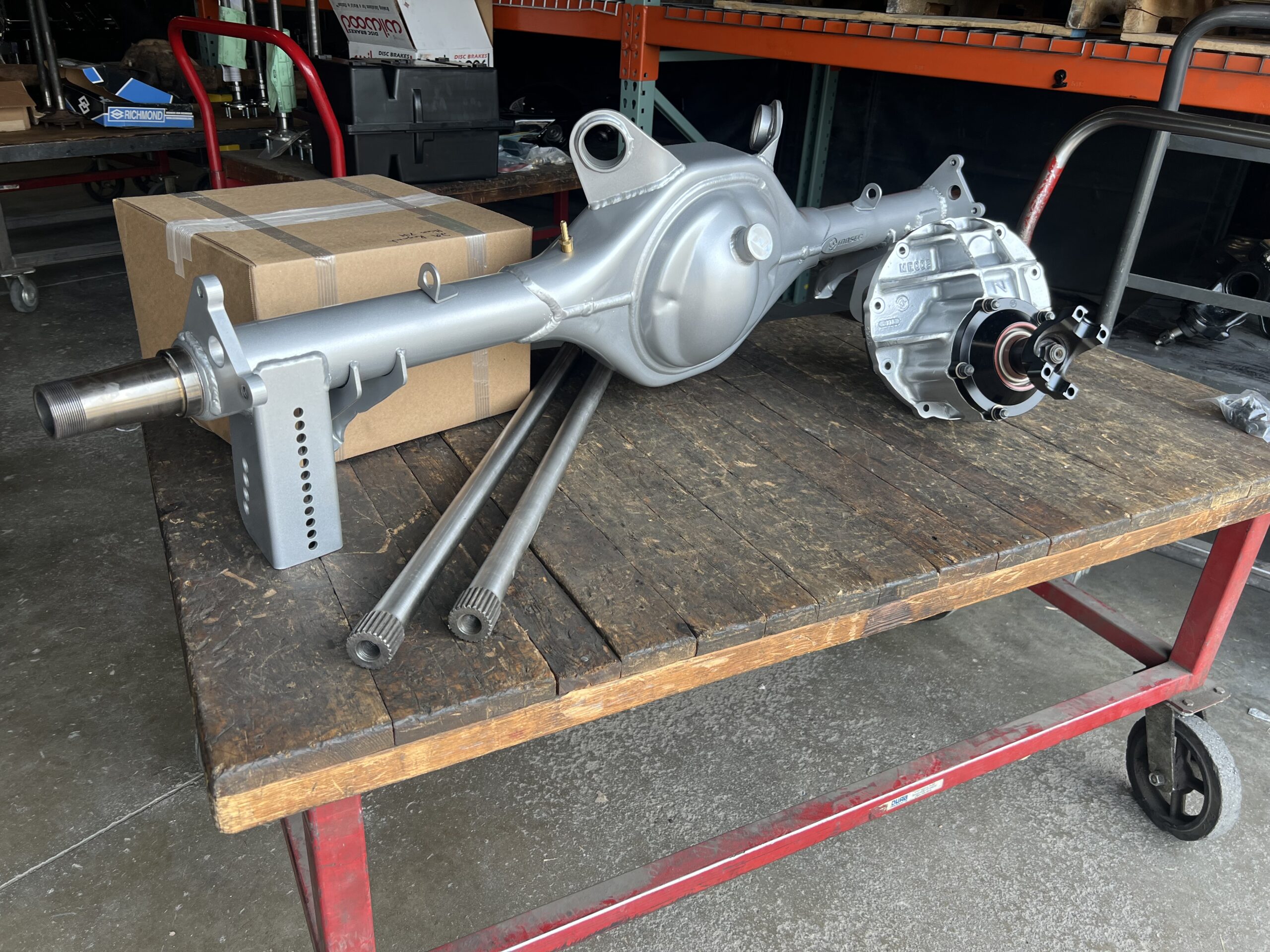

- Complete Moser Extreme Duty 9″ housing
- Full floating hub assemblies
- Steel Drive Flanges
- 8 Bolt Steel Rotor Adaptors
- Gun-drilled full float axle shafts
- Complete Wilwood Competition brake package (NO PARKING BRAKE OPTION)
- Stainless brake hoses
- Stainless Steel Flex-line Hose Kit
- Powder coated Moser Engineering third member
- All mounting hardware
Features
- Built specifically for 1977-90 Chevrolet Impala & Caprice
- Stock width: 61.625″ WMS-WMS
- Full floating hub design (Small Bearing Snouts)
- Specifically Designed Hardened Autocross Snouts – #4320HA
- Moser Extreme Duty Notchback housing
- Adjustable lower control arm brackets
- Gun-drilled 31 spline axles
- Wilwood Competition Style Calipers – #120-14331
- Wilwood 12.19″ – Ultralite HP 32 Vane Rotors – #160-5843
- Wilwood Polymatrix Brake Pads – # 15A-7263K
- 31 Spline Wavetrac differential – #5W9F31
- Aluminum Daytona pinion support – #PS028
- 1350 yoke – #PY200
- 1-Coat Silver powder coated housing & third member
- Made in the USA
Original price was: $6,351.00.$5,195.00Current price is: $5,195.00.
In stock
The Moser AUTO CROSS REAR is a Full Floating Rear End that is designed for multipurpose performance applications. especially those applications that require high g-load cornering including; Auto-Cross, Road Racing and Street Racing! The Moser Hub assembly provides the stability needed for a solid brake pedal entering corners after a high side load that can be compromised by flanged and/or c-clip axle movement.
Wilwood's Combination Parking Brake (CPB) Hydra-Mechanical Caliper uses hydraulic pressure for stopping and a mechanical locking mechanism for a parking brake. This redesigned unit provides new options for drum brake conversions and disc upgrades on rear axles that are not conducive to internal shoe systems. This caliper, when matched with the correctly proportionate rotor diameter, provides balanced bias and brake performance for use in conjunction with front wheel brake upgrades. The default calipers are the Wilwood CPB (120-10112/3-BK) that is a single piston floating design that attaches to a fixed radial mount bracket. The floating mount allows the caliper to maintain perfect alignment when the cable actuated mechanical parking brake lock is engaged and then released. The floating mount also keeps the caliper in correct alignment over the disc and prevents excessive pad knock-back on c-clip rear axles with measurable side play. As the pads wear, the caliper remains centered over the disc. Radial mounting provides nearly unlimited attachment options. The parking brake lock is cable actuated. Connections are made with common cable ends that use a 1/2" cable housing end on the stop bracket, and a 1/8" to 9/64" cable with a crimped or welded ball end. The caliper will accept the OE cable on some vehicles. For other vehicles, new cable ends can be ordered to adapt the caliper to the vehicle's original cable system. For custom installations, aftermarket hand brake kit suppliers can easily configure the cable with the correct attachment end. Standard rotors are the Wilwood's Ultralitet UL straight 32 vane rotors (160-5844) provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Don't confuse these rotors with bargain priced off-brand named parts. Wilwood's modern manufacturing capability, combined with large scale economy, make it possible to offer this level of quality and performance at such an affordable price. These can be upgraded to the SRP Drilled Performance Rotors (160-7103/4-BK) feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight.

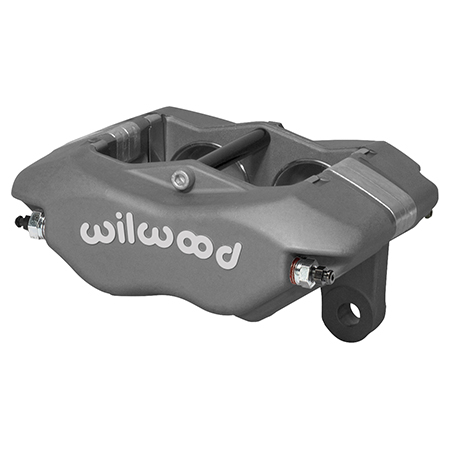

For those wanting the ultimate in performance The Competition Calipers are the Narrow Dynapro Lug Mount. Narrow Mount DynaPro (NDP) forged billet calipers (120-9732) represent the next generation of calipers available as an upgrade or direct replacement for the popular Narrow Mount Dynalite model series with 3.50" mounting. NDP calipers combine superior strength with several new performance enhancements to make these the best "Dyna" series calipers ever built.
- Fits most 18" wheels
- .81" x 12.19" Rotors
- Wilwood Caliper with built in Parking Brake
- Dual bolt patterns
- Wilwood Pads
- 8 inch Depth Required
Kit includes; New 9" HD Housing, Thru-Hardened Snouts, Hubs, Full Float Axles, Drive Plates, Rotor Adapters,Studs, Stainless Steel Flex-line Hose Kit & Emergency Brake Cables.
Additional information
| Weight | 149 lbs |
|---|---|
| Dimensions | 62 × 13 × 19 in |
