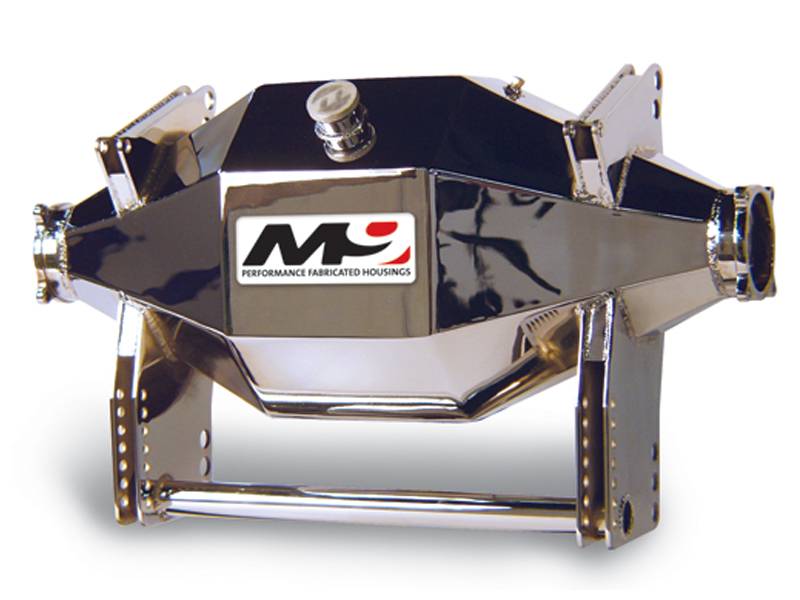

MOSER M9 DRAG CAN HOUSINGS

SKU: 7HFABA Category: Moser Drag Cans Tags: Composite, M9, Dragster

The Moser M9 Drag is a high-strength racing rear end housing designed specifically for dragsters, race cars, and professional chassis builders. Its unique one-piece triangulated design helps minimize deflection caused by torsional forces at launch, providing improved strength, consistency, and durability.
Built to order for chassis shops and serious racers, the M9 Drag Can is available with or without 4 link brackets, custom built to your specific wheel to wheel measurements, and additional options to meet specific race car requirements.

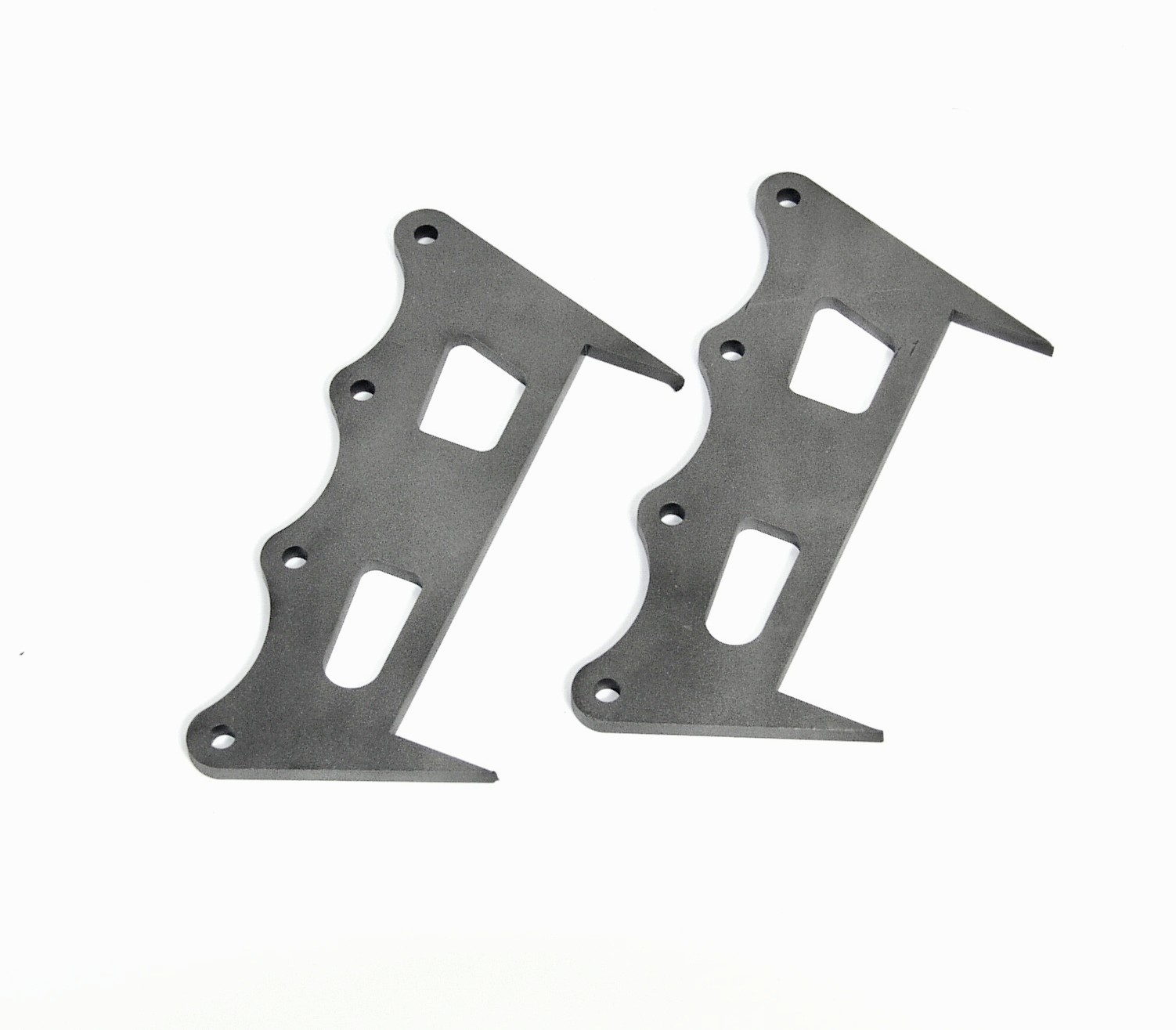

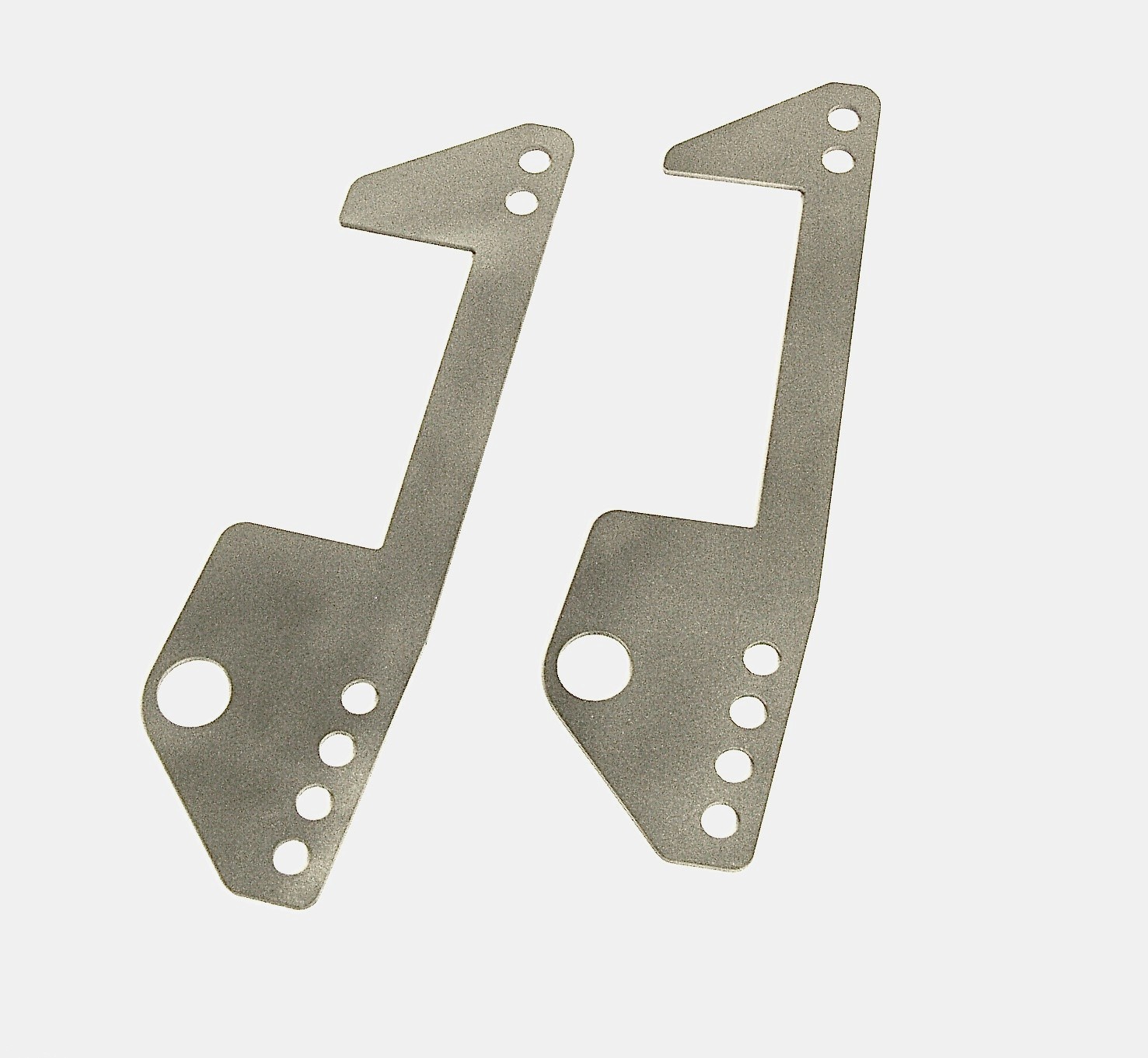

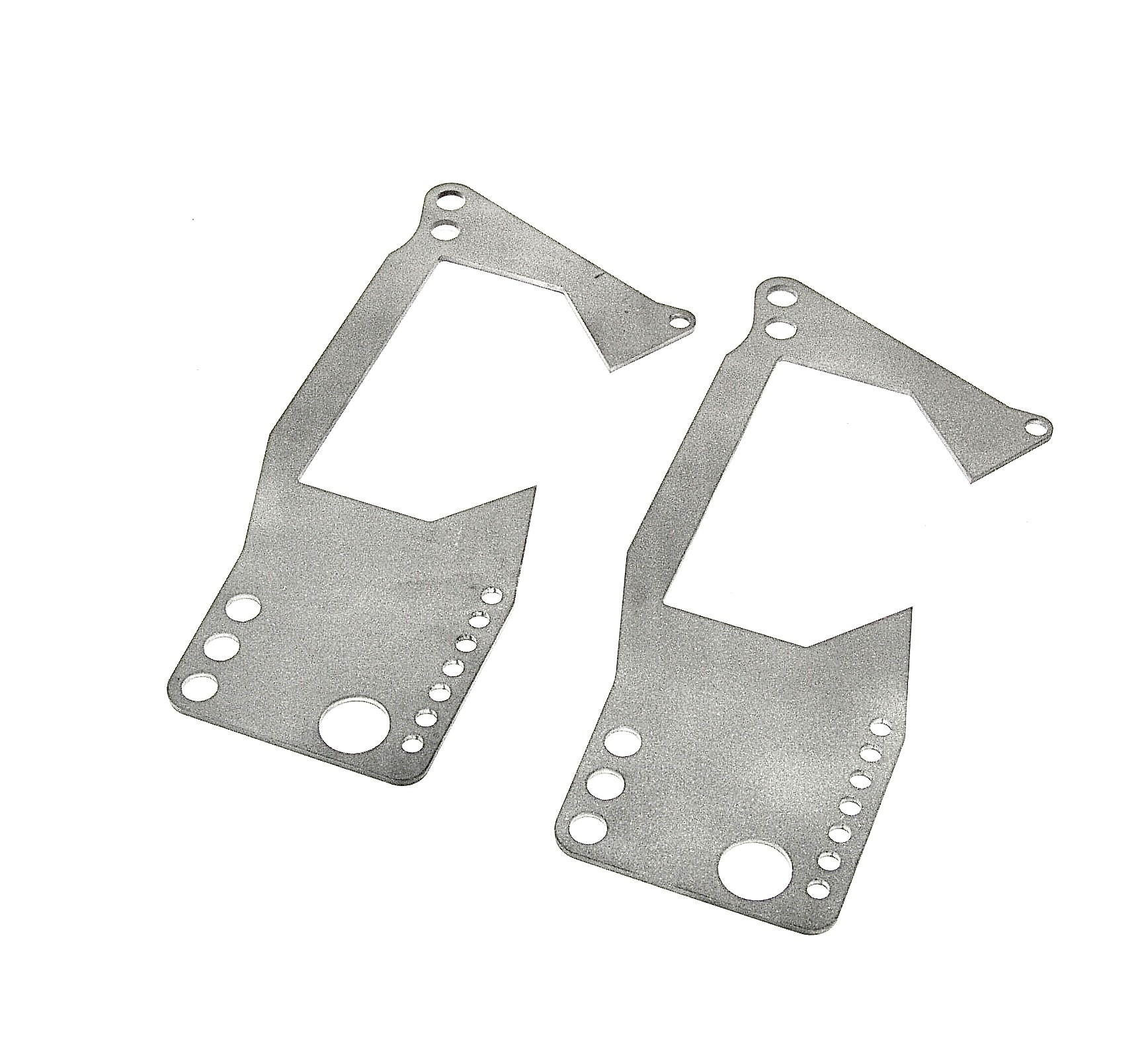

Custom 4-Link Brackets Required: M9 Drag housings are built with custom 4-link bracket configurations to accommodate the specific chassis and suspension setup. Bracket specifications and placement must be provided when ordering

The Moser M9 Drag Housing is built for racers who demand strength, consistency, and durability. Constructed from 1/8" thick, laser-cut mild steel, the M9 Drag can also be fabricated from chrome-moly steel upon request.
What sets the Moser M9 Drag apart from other racing housings is its unique one-piece, triangulated design. By fabricating the housing from a single triangulated piece of material, torsional deflection at launch is significantly reduced. The result is a straighter, more consistent launch and a housing designed to withstand the demands of serious drag racing.
Additional strengthening features include internal gussets and bulkheads, along with a heavy-duty 3/8" thick face plate for added rigidity and durability.
The M9 Drag Housing also includes a custom-machined fill, drain, and vent assembly, stud kit, and installed housing ends for a complete, race-ready package.

Additional information

Weight	51 lbs
Dimensions	17 × 11 × 11 in
