12-Bolt 2010-2015 Camaro (5th Gen) & 2008-2009 Pontiac G8 Complete Rear Sub Frame Kit
The New Moser Engineering “Gen V” Rear Sub Frame Kit!
Fits:

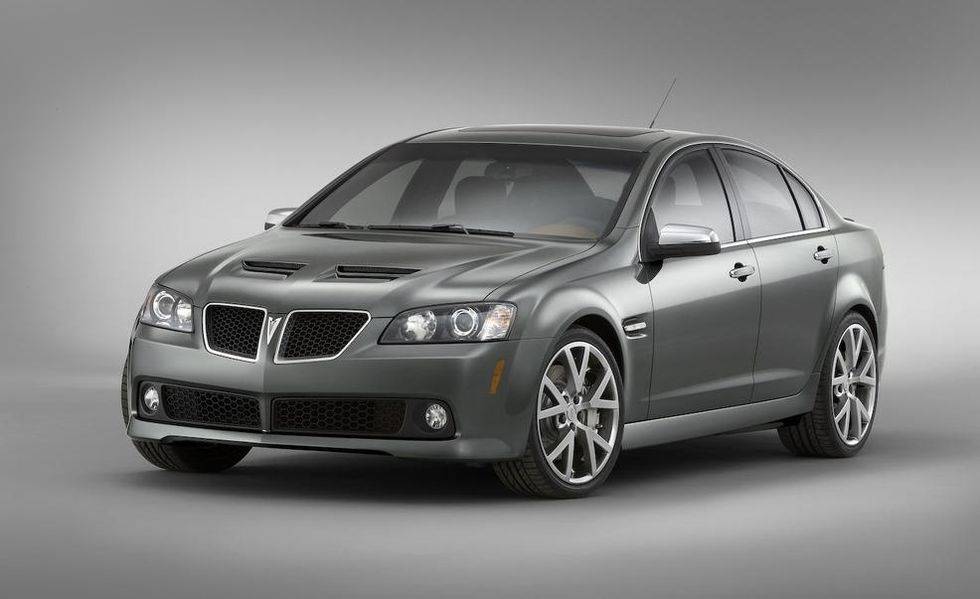

2008 – 2009 Pontiac G8
2010 – 15 Chevrolet Camaro
*Kit ships within 3 weeks of online order completion!
PRODUCT DESCRIPTION:
The Moser Engineering rear sub frame kit for the 2010 -15 Camaro was primarily designed for NHRA Stock Eliminator classes but can be adapted for other applications.
*THIS KIT REQUIRES PROFESSIONAL INSTALLATION BY A CHASSIS/FABRICATION SHOP AND SHOULD NOT BE ATTEMPTED BY A NON-QUALIFIED INDIVIDUAL!
***OEM FUEL TANK MUST BE REMOVED, AN AFTERMARKET FUEL CELL IS REQUIRED!
***REMOVAL OF THE SPARE TIRE & CRADLE IS REQUIRED!
***AFTERMARKET BRAKES REQUIRED!
***MUST PROVIDE A WHEEL MOUNTING SURFACE TO WHEEL MOUNTING SURFACE MEASUREMENT!
Original price was: $8,398.00.$8,298.00Current price is: $8,298.00.
The New Moser Engineering "Gen V" Rear Sub Frame Kit!
Fits:
2008 - 2009 Pontiac G8
2010 2011 2012 2013 2014 2015 Chevrolet Camaro
*Kit ships within 3 weeks of online order completion!
The standard kit includes the following;
- New Moser 12 Bolt Housing
- 35 Spline Custom Alloy Axles Come Standard
- Moser Lightweight Steel Spool
- Bolt Pro/Comp Ring & Pinion
- 1350 Series Chrome Moly Pinion Yoke
- Timken Bearings
- 5/8" Drive Stud Kit (2" or 3")
- Sealed Axle Bearings
- Chrome Moly - Torque Arm, Driveshaft Loop, Transmission Cross-member, Panhard Bar, Track Locator, Lower Control Arms, Spring Saddles, Anti-Roll Adjuster, Anti-Roll Arm, Anti-Roll Tubes and Sub Frame Kit
- Mild Steel - Front Cross-member, Rear Cross-member, Upper Shock Mounts, Spring Mounts
All Associated Hardware is supplied!
PRODUCT DESCRIPTION
The Moser Engineering rear sub frame kit for the 2008 -2009 Pontiac G8 & 2010 -15 Camaro was primarily designed for NHRA Stock Eliminator classes but can be adapted for other applications.
*THIS KIT REQUIRES PROFESSIONAL INSTALLATION BY A CHASSIS/FABRICATION SHOP AND SHOULD NOT BE ATTEMPTED BY A NON-QUALIFIED INDIVIDUAL!
**OEM FUEL TANK MUST BE REMOVED, AN AFTERMARKET FUEL CELL IS REQUIRED!
***REMOVAL OF THE SPARE TIRE & CRADLE IS REQUIRED!
***AFTERMARKET BRAKES REQUIRED!
***MUST PROVIDE A WHEEL MOUNTING SURFACE TO WHEEL MOUNTING SURFACE MEASUREMENT!
Additional information
| Weight | 500 lbs |
|---|---|
| Dimensions | 69 × 60 × 37 in |
